İŞLEMCİ : Intel® Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
YONGA SETİ : Intel® B365
BELLEK : 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
DAHİLİ GRAFİK : Integrated Graphics Processor- Intel® HD Graphics support - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
GENİŞLEME YUVALARI : 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1
SES DESTEĞİ : Realtek® ALC887 8-Channel High Definition Audio CODEC
LAN : Realtek® RTL8111H, 1 x Gigabit LAN ASUS LAN Guard
USB PORTLARI : Intel® B365 Chipset : 7 x USB 3.1 Gen 1 up to 5Gbps port(s) (5 at back panel, , 4 x Type-A+1 x Type-C, 2 at mid-board) Intel® B365 Chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board)
DEPOLAMA ARAYÜZÜ : Intel® B365 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10
ARKA GİRİŞ/ÇIKIŞ PORTLARI : 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps 4 x USB 3.1 Gen 1 Type-A 1 x 8-channel Audio I/O
DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI : 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Chassis intrusion header 1 x Speaker connector
İŞLETİM SİSTEMİ DESTEĞİ : Windows® 10 64-bit
FORM FAKTÖRÜ : mATX Form Factor 9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )
BIOS : 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
AÇIKLAMA : -
YONGA SETİ : Intel® B365
BELLEK : 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
DAHİLİ GRAFİK : Integrated Graphics Processor- Intel® HD Graphics support - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
GENİŞLEME YUVALARI : 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1
SES DESTEĞİ : Realtek® ALC887 8-Channel High Definition Audio CODEC
LAN : Realtek® RTL8111H, 1 x Gigabit LAN ASUS LAN Guard
USB PORTLARI : Intel® B365 Chipset : 7 x USB 3.1 Gen 1 up to 5Gbps port(s) (5 at back panel, , 4 x Type-A+1 x Type-C, 2 at mid-board) Intel® B365 Chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board)
DEPOLAMA ARAYÜZÜ : Intel® B365 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10
ARKA GİRİŞ/ÇIKIŞ PORTLARI : 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps 4 x USB 3.1 Gen 1 Type-A 1 x 8-channel Audio I/O
DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI : 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Chassis intrusion header 1 x Speaker connector
İŞLETİM SİSTEMİ DESTEĞİ : Windows® 10 64-bit
FORM FAKTÖRÜ : mATX Form Factor 9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )
BIOS : 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
AÇIKLAMA : -

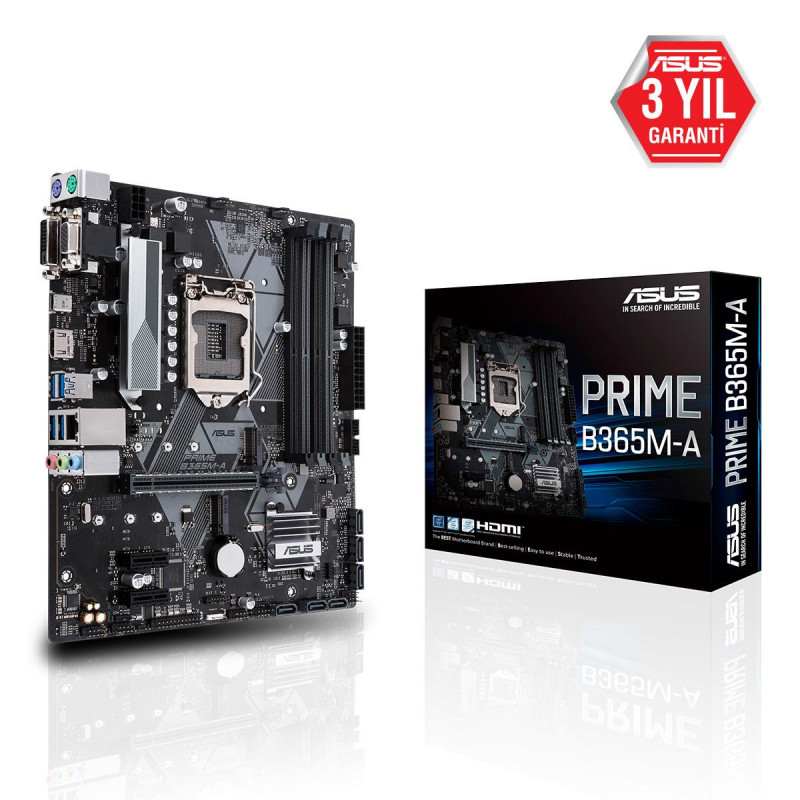

ASUS PRIME B365M-A 1151P DDR4 SES GLAN HDMI/DVI/VGA SATA3 USB3.1 MATX
- Marka: ASUS
- Ürün Kodu: 65961
- Stok Durumu: Stokta yok
$106,80
- Vergiler Hariç: $89,00
