İŞLEMCİ : Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
YONGA SETİ : AMD B450
BELLEK : 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
DAHİLİ GRAFİK : 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2.
GENİŞLEME YUVALARI : 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
SES DESTEĞİ : Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
LAN : Realtek GbE LAN chip (10/100/1000 Mbit)
USB PORTLARI : Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
DEPOLAMA ARAYÜZÜ : 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
ARKA GİRİŞ/ÇIKIŞ PORTLARI : 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
DAHİLİ GİRİŞ/ÇIKIŞ PORTLARI : 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
İŞLETİM SİSTEMİ DESTEĞİ : Support for Windows 10 64-bit Support for Windows 7 64-bit
FORM FAKTÖRÜ : Micro ATX Form Factor; 24.4cm x 20.5cm
BIOS : 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS
AÇIKLAMA : -

Yorum Yap

Not: HTML'e dönüştürülmez!
    Kötü            İyi
Doğrulama Kodu

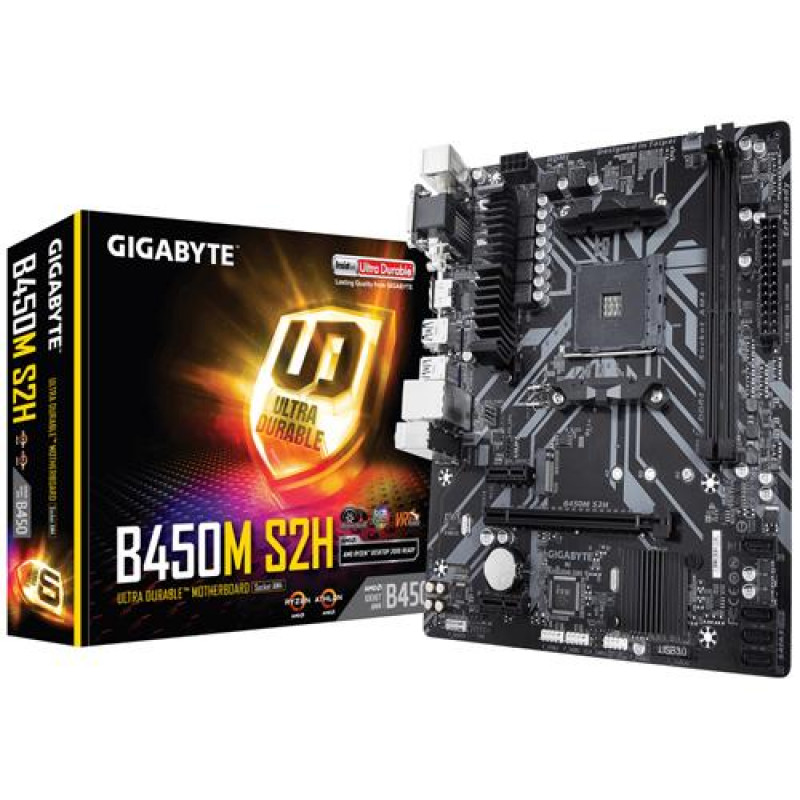

GIGABYTE B450M S2H AM4 DDR4 SES GLAN HDMI/DVI/VGA SATA3 USB3.1 MATX

  • Marka: GIGABYTE
  • Ürün Kodu: 65341
  • Stok Durumu: Stok: 10
  • $88,80

  • Vergiler Hariç: $74,00
