Aten 2L-2801 KVM Mesafe Uzatma Cihazları için Low Skew Category 5E Kablosu

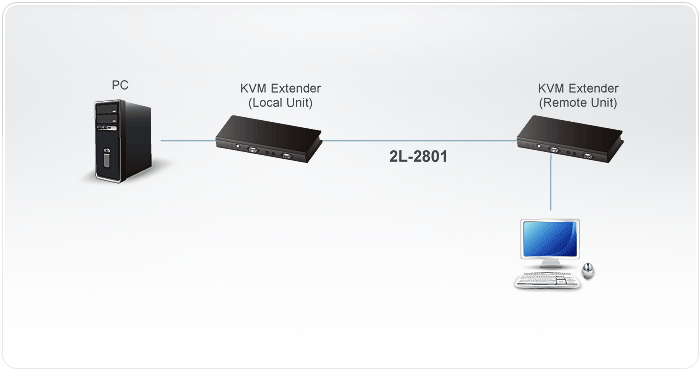

Yüksek kalite RGB görüntü iletimi 350 MHz bantgenişliği 305 metrelik rulo Gecikme: 1 ~ 350 MHz 20nS/100 metre maksimum Dış Kılıf Hammaddesi: FR PVC Zırhsız İletken Hammaddesi: 24 AWG ATEN analog Cat 5 görüntü uzatma cihazları, KVM sinyal uzatma cihazları ve Cat 5 KVM switch'lerle birliklte kullanılır. UL, ETL onaylı Construction Connectors Size 24 AWG Construction Solid bare copper Cond. Diam. 1/0.492±0.02 mm Insulation Avg. Thick. 0.195 mm Min. Thick. 0.185 mm Diameter 0.880 ± 0.02 mm Material HDPE Color codes 1.Blue × White/Blue stripe 2.Orange × White/Orange stripe 3.Green × White/Green stripe 4.Brown × White/Brown stripe Shielded Pair stranded 2 cores stranded Assembly stranded 4 pair stranded Jacketed Avg. Thick. 0.45 mm Min. Thick. 0.41 mm Diameter 4.80 ± 0.20 mm Material FR PVC Color Blue or other color Electrical & Physical Properties Item 24AWG × 4p Cable Length 305 m/ 1000 ft Conductor Resistance 9.38 Ohm/100m/20°C Max. Mutual Capacitance 56 Pf/M Max. Dielectric Strength Ac 1.5 Kv/2 Sec. Spark Test 2.5 Kv Insulation Unaged Tensile Strength 2400 Psi Min. (1.69 Kg/M(mxm)) Elongation 300% Min. Aged Tensile Strength Unaged Min. 75%(100°C×48hrs) Elongation Unaged Min. 75%(100°C×48hrs) Jacketed Unaged Tensile Strength 2000 Psi Min.(1.41 Kg/M(mxm)) Elongation 100% Min. Aged Tensile Strength Unaged Min. 85%(100°C×240hrs) Elongation Unaged Min. 50%(100°C×240hrs) Insulation Shrinkback 150m/M, 121°C±1°C×1hr≦9.5m/M Cold Bend Test -20°C×4hrs No.Crack Flame Retardant Test CMR Ac Leakage Current Througt Overall Jacket Ac 1500v≦10 Ma Dc Resistance Unbalance 5% Max. Pair-To-Ground Capacitance Unbalance 330 Pf/100m Max. Characteristic Impedance 1 - 350 Mhz 100±15 Ohms Structural Return Loss 350 Mhz 10.6db Min. Propagation Delay 350 Mhz 536ns/100m Max. Delay Skew 1 - 350 Mhz 20ns/100m Max. Weight 9.8 KG
