HDBaseT 3.0 – supports True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across a long distance via a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above with no compression and zero latency
Superior video quality – supports HDR 10+ and video resolutions up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m
Dual console operation – control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends
Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode
Flexible 4 x USB 2.0 extension – each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection
Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
HDCP2.3 and 2.2 compliant
Supports widescreen formats
Built-in 8KV/15KV ESD protection
Firmware upgradable
No software or driver installation required
Rack-mountable
Package Contents
1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Local Unit)
1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Remote Unit)
1x HDMI cable
1x microphone cable
1x speaker cable
1x USB Type-A to USB Type-B cable
2x mounting kits
8x foot pads
2x power adapters and power cords
1x user instructions
Input Resolutions
640 x 480 @ 60/67/72/75 Hz
720p 60 Hz
800 x 600 @ 56/60/72/75 Hz
1080i 60 Hz
1024 x 768 @ 60/70/75 Hz
640 x 480 60Hz (4:3)
1280 x 800 @ 60 Hz
576p 50 Hz (4:3)/(16:9)
1280 x 1024 @ 60/75 Hz
720p 50 Hz
1400 x 1050 @ 60 Hz
1080i 50 Hz
1440 x 900 @ 60 Hz
1080p 24/25/30/50 Hz
1600 x 1200 @ 60 Hz
3840 x 2160p 24/25/30/50/60 Hz
1680 x 1050 @ 60 Hz
4096 x 2160p 24/25/30/50/60 Hz
1920 x 1080 @ 60/120 Hz
3840 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0
1920 x 1200 @ 60 Hz
4096 x 2160p 50 Hz 4:2:0/60 Hz 4:2:0
1920 x 1200 @ 60 Hz (Reduced Blanking)
1920 x 1080 @ 144 Hz
1080p 60 Hz
2560 x 1440 @ 144 Hz
480p 60 Hz (4:3) / (16:9)
Function
CE840L
CE840R

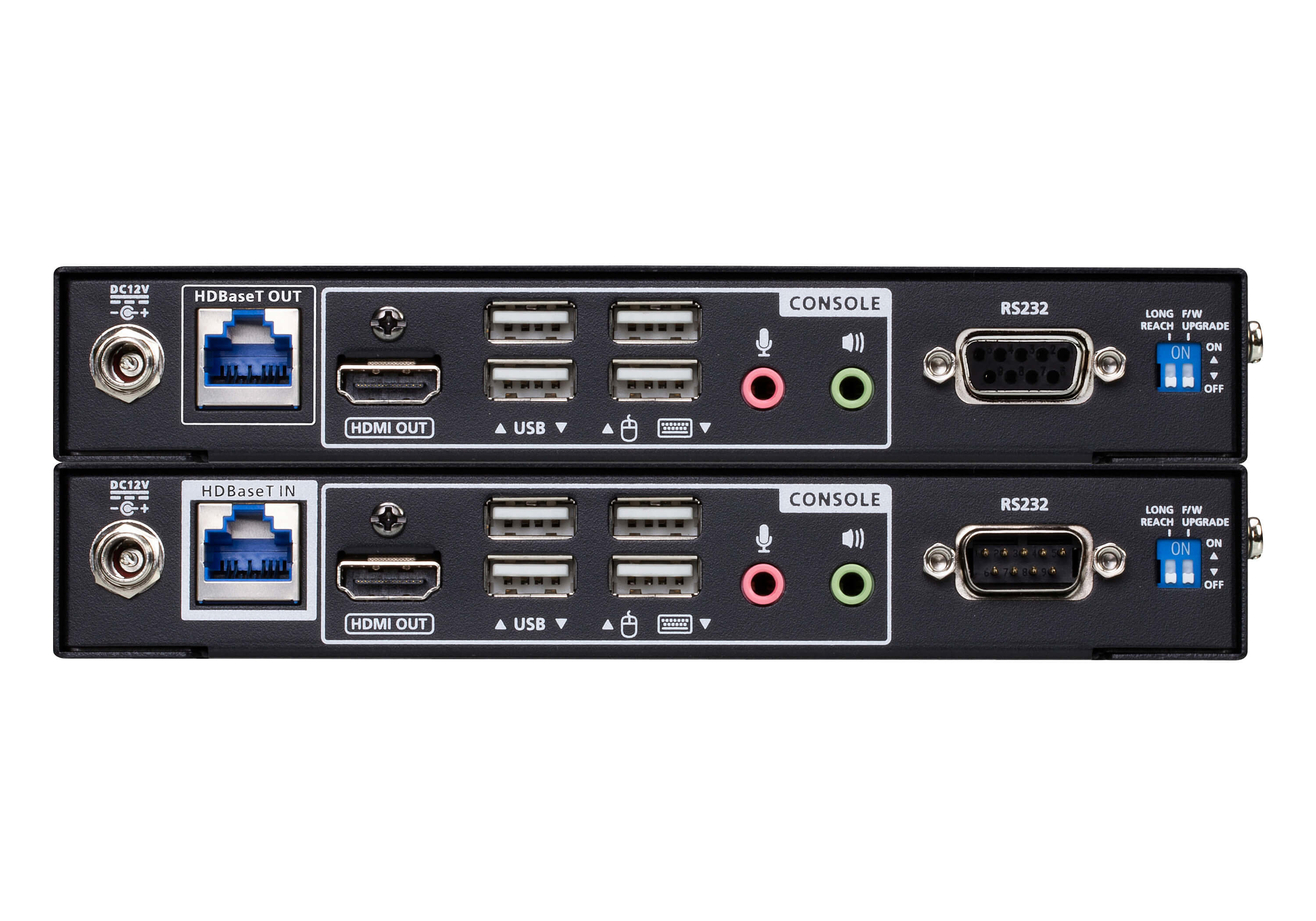

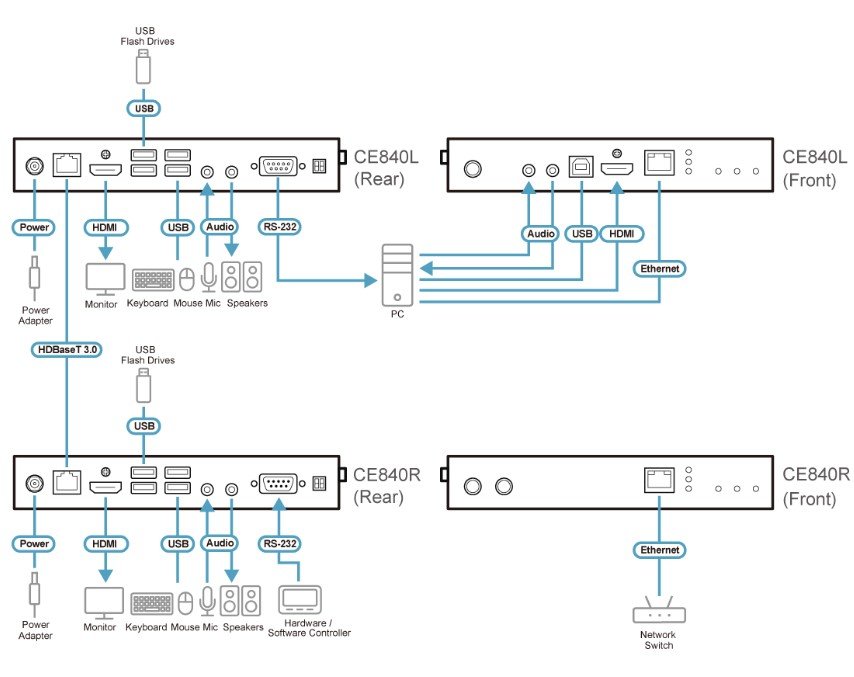

Connectors
Console Ports
1 x HDMI (Female, Black)
4 x USB Type A (Female, White) *
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)
* 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match
1 x HDMI (Female, Black)
4 x USB Type A (Female, White) *
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)
1 x GbE (RJ-45 Female, Black)
* 2 ports x USB for Keyboard & Mouse use, 2 ports x USB for other USB2.0 peripherals, DO NOT mix and match

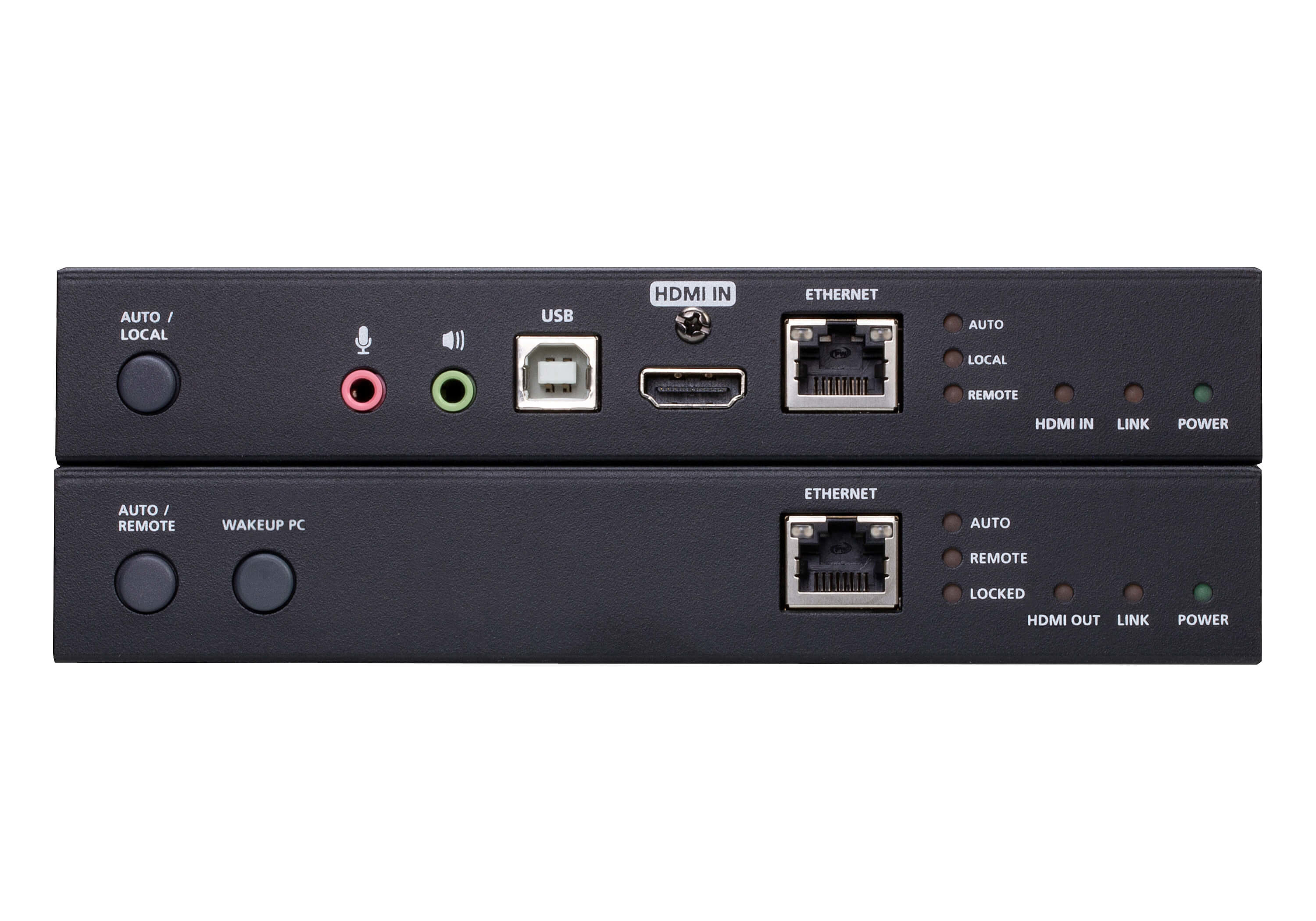

KVM Ports
1 x HDMI (Female, Black)
1 x USB Type B (Female, White)
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)
1 x GbE (RJ-45 Female, Black)
N/A
RS-232
1 x DB-9 Female (Black)
1 x DB-9 Male (Black)
Power
1 x DC Jack (Black)
1 x DC Jack (Black)
Unit To Unit
1 x RJ-45 Female (Black, HDBaseT)
1 x RJ-45 Female (Black, HDBaseT)
Video
Max. Data Rate
18Gbps (6Gbps per lane)
18Gbps (6Gbps per lane)
Max. Pixel Clock
600 MHz
600 MHz
Compliance
HDMI (Deep Color, 4K/60Hz); 4K HDR+
HDCP2.3 Compatible
Consumer Electronics Control (CEC)*
*The CEC signals are only bypassed from the Local unit to the remote unit and do not support local HDMI console output.
HDMI (Deep Color, 4K/60Hz); 4K HDR+
HDCP2.3 Compatible
Consumer Electronics Control (CEC)
Max. Resolution
4096 x 2160 @ 60Hz (4:4:4)
3840 x 2160 @ 60Hz (4:4:4)
4096 x 2160 @ 60Hz (4:4:4)
3840 x 2160 @ 60Hz (4:4:4)
Max. Resolutions / Distance
4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT3 Certified Cat 6a U/FTP cable or above / ATEN 2L-2920 Cat 6a cable)
4K x 2K @ 30Hz (4:4:4) up to 50m (HDBaseT certified Cat6 cable / ATEN 2L-2910 cable)
4K x 2K @ 60Hz (4:4:4) up to 100m (HDBaseT3 Certified Cat 6a U/FTP cable or above / ATEN 2L-2920 Cat 6a cable)
4K x 2K @ 30Hz (4:4:4) up to 50m (HDBaseT certified Cat6 cable / ATEN 2L-2910 cable)
LEDs
Power
1 (Green)
1 (Green)
Link
1 (Orange)
1 (Orange)
Video
1 x HDMI IN (Orange)
1 x HDMI OUT (Orange)
Console Status
3 x Local USB Keyboard/Mouse Authority Indicator (Green)
3 x Remote USB Keyboard/Mouse Authority Indicator (Green)
Switches
Long Reach Mode Switch
1 x Slide Switch (Reserved)
1 x Slide Switch (Reserved)
Firmware Upgrade
1 x Slide Switch
1 x Slide Switch
Pushbuttons
Wakeup button
N/A
1 x Pushbutton
Operating Mode Selection
1 x Local USB Keyboard/Mouse Authority switch
1 x Remote USB Keyboard/Mouse Authority switch
Power Consumption
DC12V:7.36W:60BTU
DC12V:7.37W:60BTU
Environmental
Operating Temperature
0-40˚C
0-40˚C
Storage Temperature
-20-60˚C
-20-60˚C
Humidity
0-80% RH, Non-condensing
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Metal
Weight
0.82 kg ( 1.81 lb )
0.81 kg ( 1.78 lb )
Dimensions (L x W x H)
17.82 x 15.60 x 2.88 cm
(7.02 x 6.14 x 1.13 in.)
17.82 x 15.60 x 2.88 cm
(7.02 x 6.14 x 1.13 in.)
Note
Long reach mode reserved for future improvement
Long reach mode reserved for future improvement
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
