One USB keyboard and mouse controls two/four DisplayPort computers and share two USB peripherals
Supports Quad Display by connecting two Dual Display KVM switches
Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Supports DisplayPort Dual-Mode technology (DP++) 1
Supports MST (Multi-Stream Transport ) 2
Supports Console keyboard emulation / bypass feature
Supports Console mouse emulation / bypass feature
Independent switching of KVM, USB, and Audio
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
DisplayPort 1.2 compliant; HDCP compliant 3
Supports HD audio 4
Power on detection
Firmware upgradable
Note:
1. DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
2. MST (Multi-Stream Transport ) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant
3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue
4. HD audio through DisplayPort cannot be switched independently

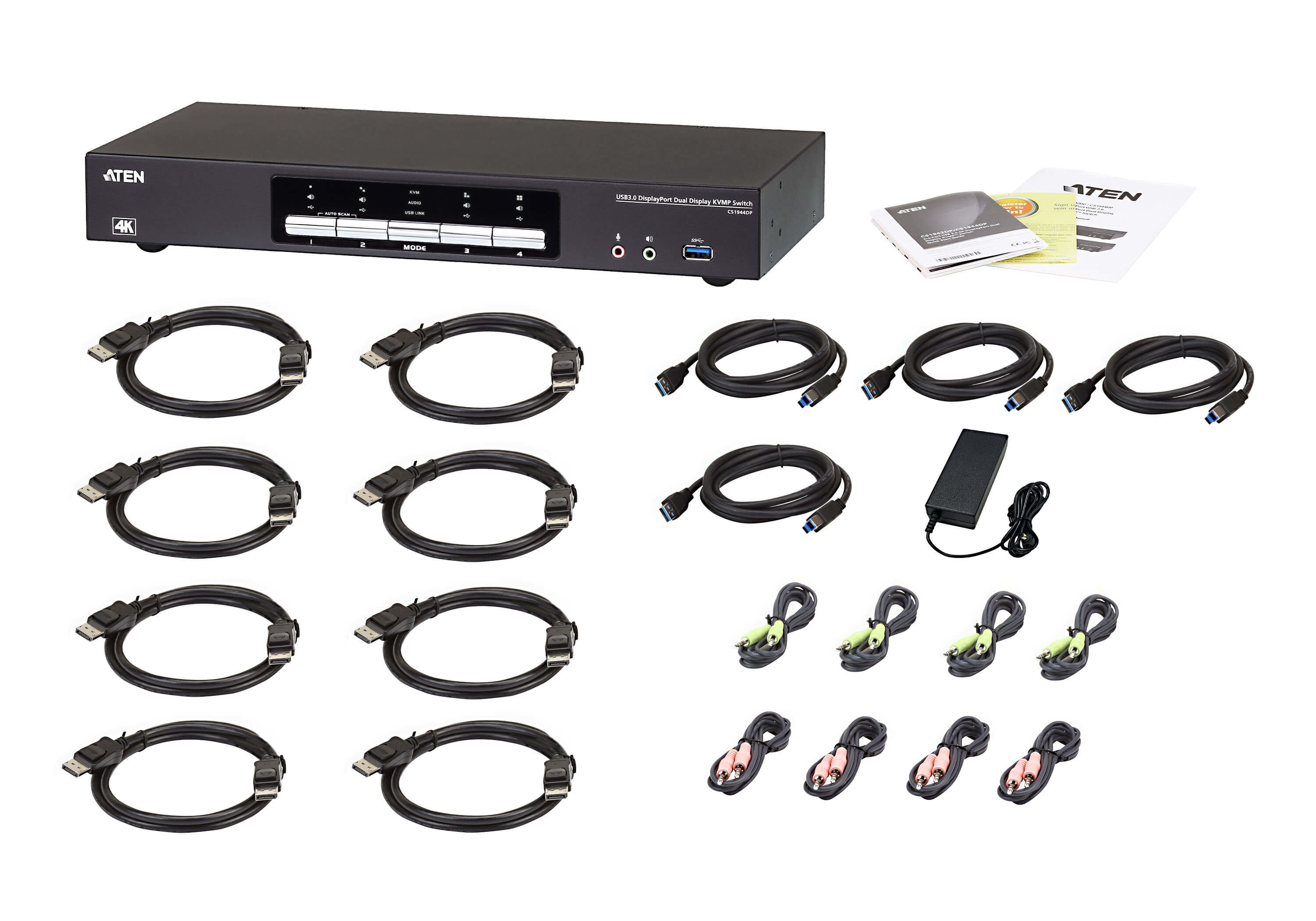

Package Contents
1x 4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
8x DisplayPort 1.2 Cables
4x USB 3.0 Cables
8x Audio Cables
1x Power Adapter
1x User Instructions
Computer Connections
4
Port Selection
Hotkey, Pushbutton, Mouse, RS-232 Commands

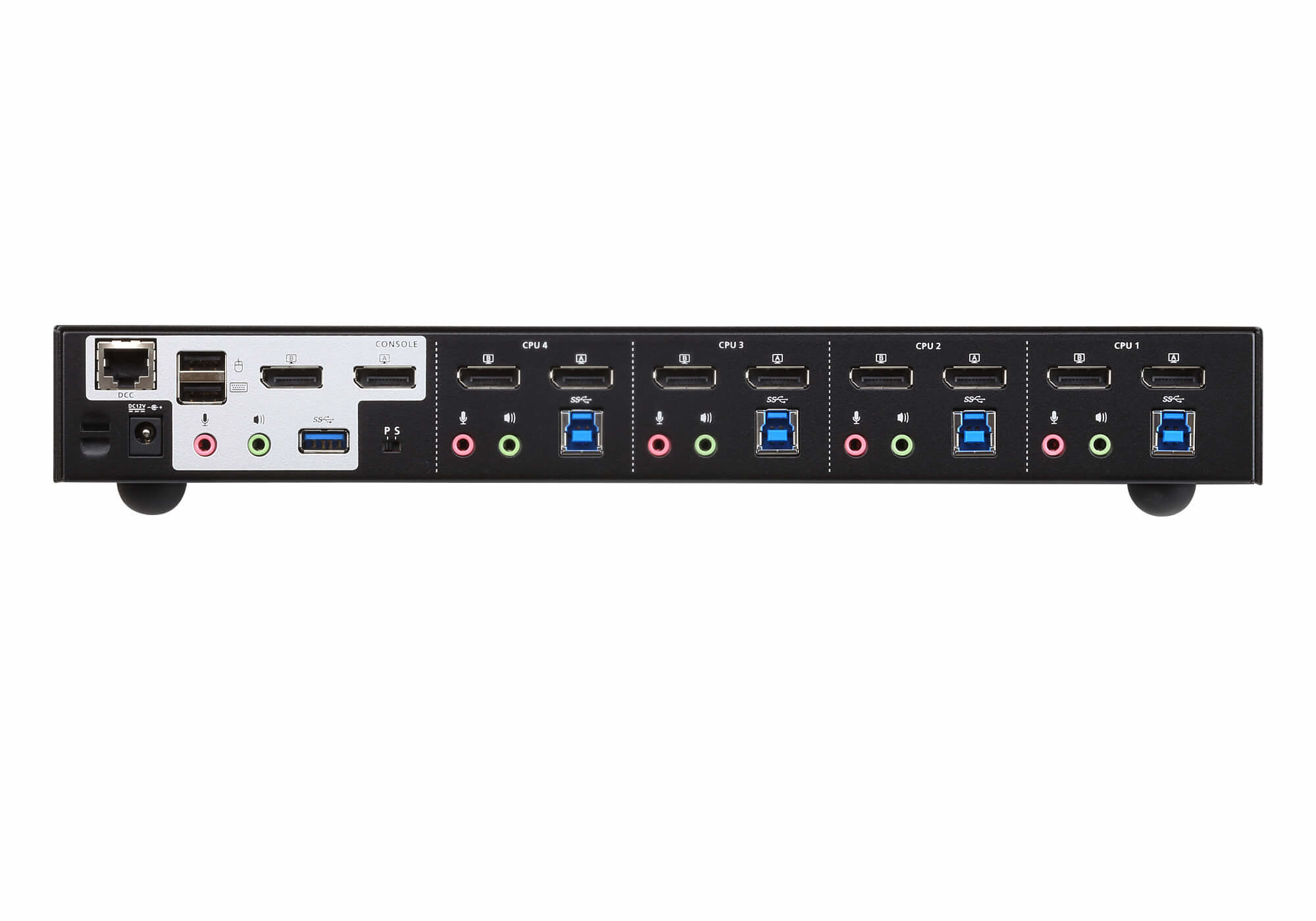

Connectors

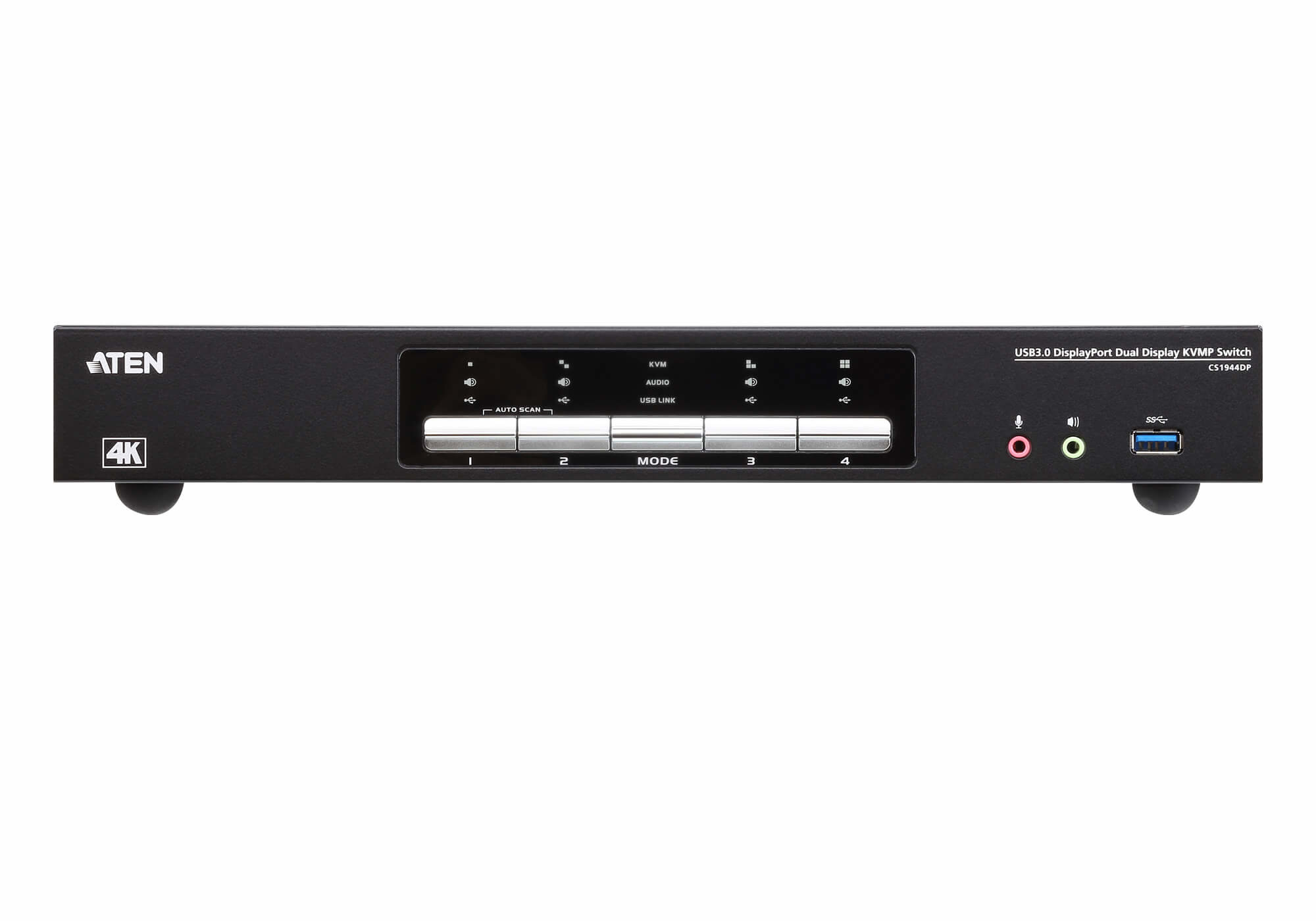

Console Ports
2 x USB Type A Female
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports
4 x USB3.1 Gen1 Type B Female (Blue)
8 x DisplayPort Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports
1 x RJ-45 Female
Power
1 x DC Jack
USB Hub
2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
LEDs
KVM
5 (Orange)
Audio
5 (Green)
USB Link
5 (Green)
Switches
Selected
5 x Pushbutton
Station Selection
1 x Slide Switch
Emulation
Keyboard / Mouse
USB
Video
4096 x 2160 @ 60Hz
Scan Interval
1-99 seconds (default: 5 seconds)
Power Consumption
DC12V:6.125W:85BTU
Environmental
Operating Temperature
0–50°C
Storage Temperature
-20–60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
1.51 kg ( 3.33 lb )
Dimensions (L x W x H)
33.50 x 15.66 x 4.40 cm
(13.19 x 6.17 x 1.73 in.)
