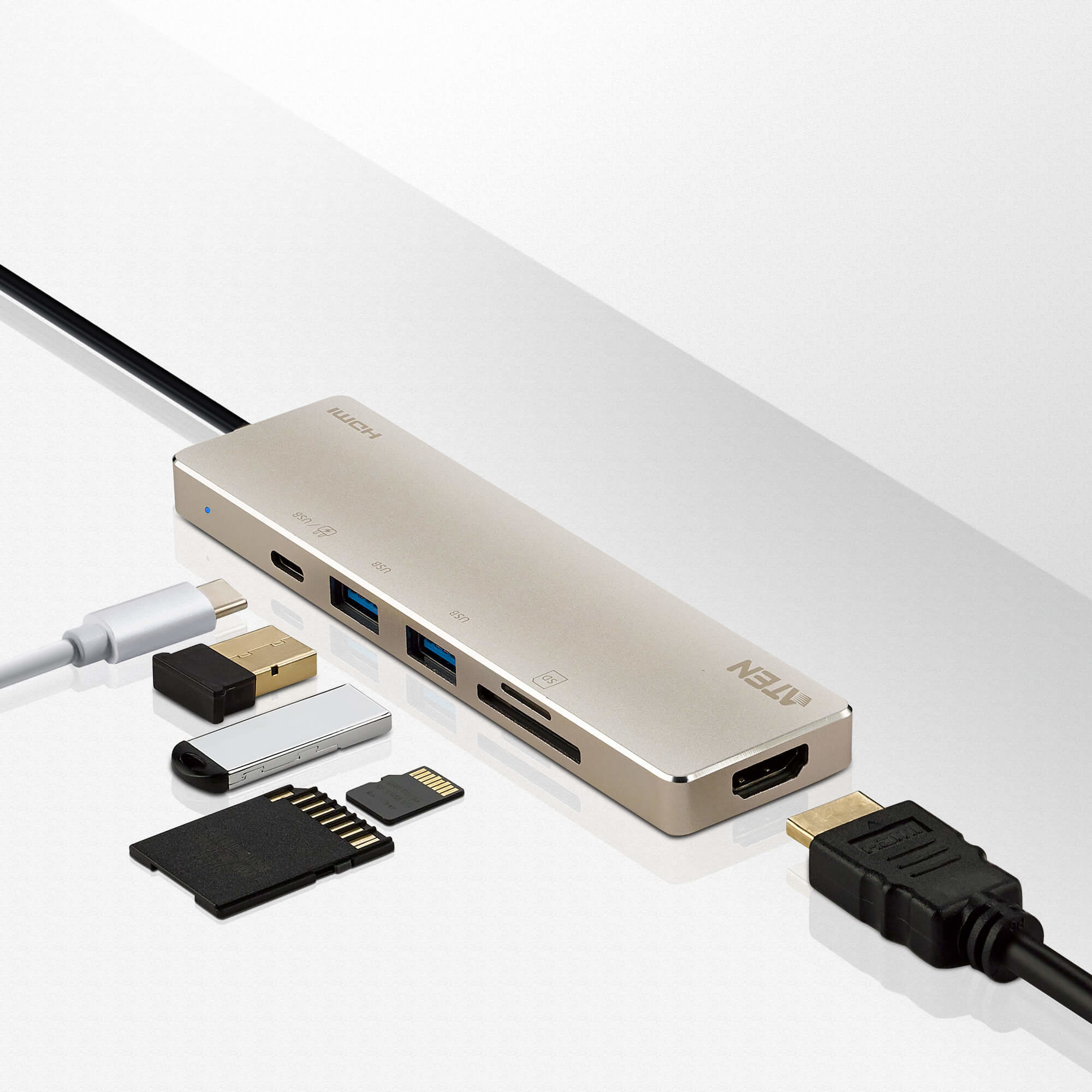

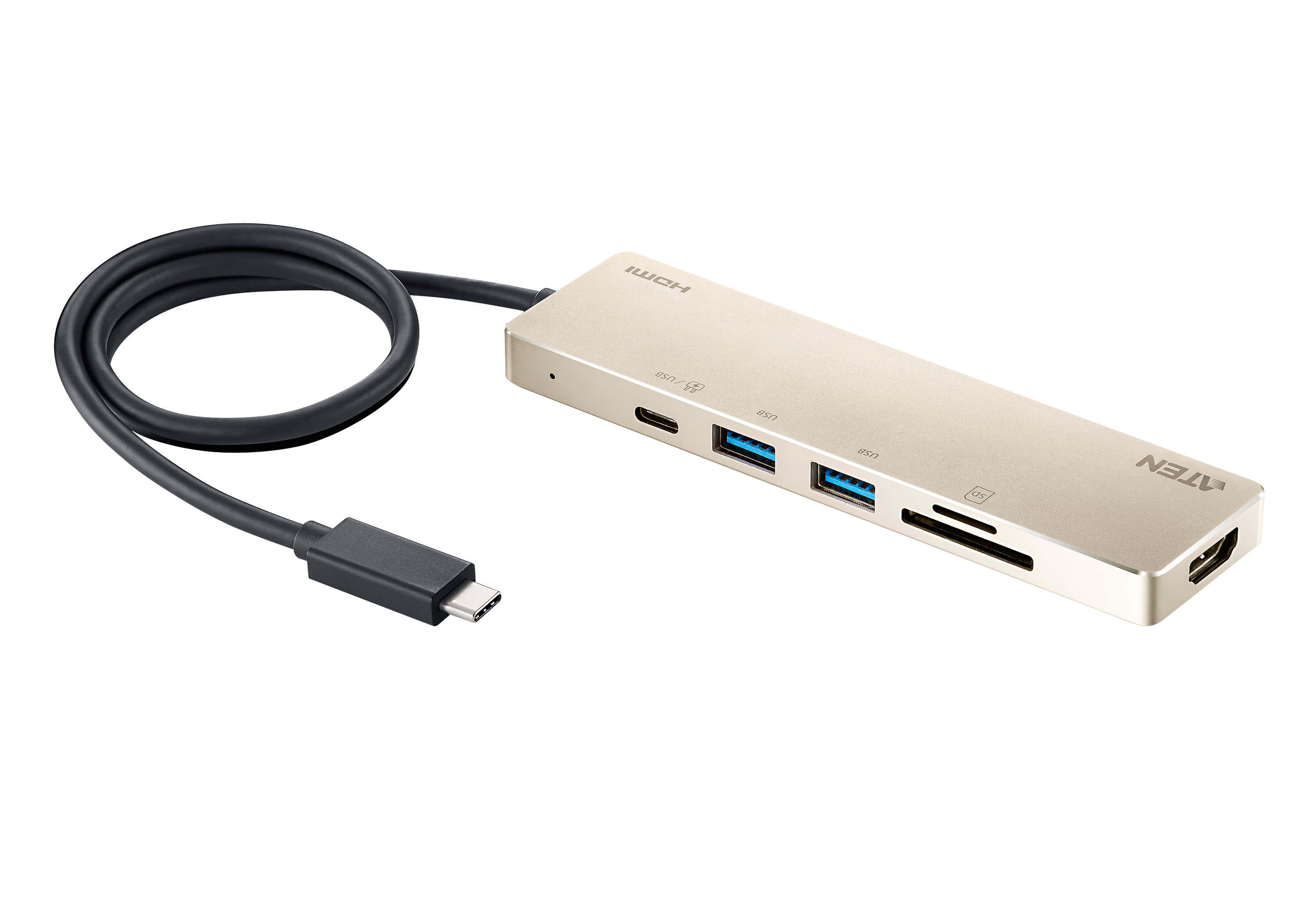

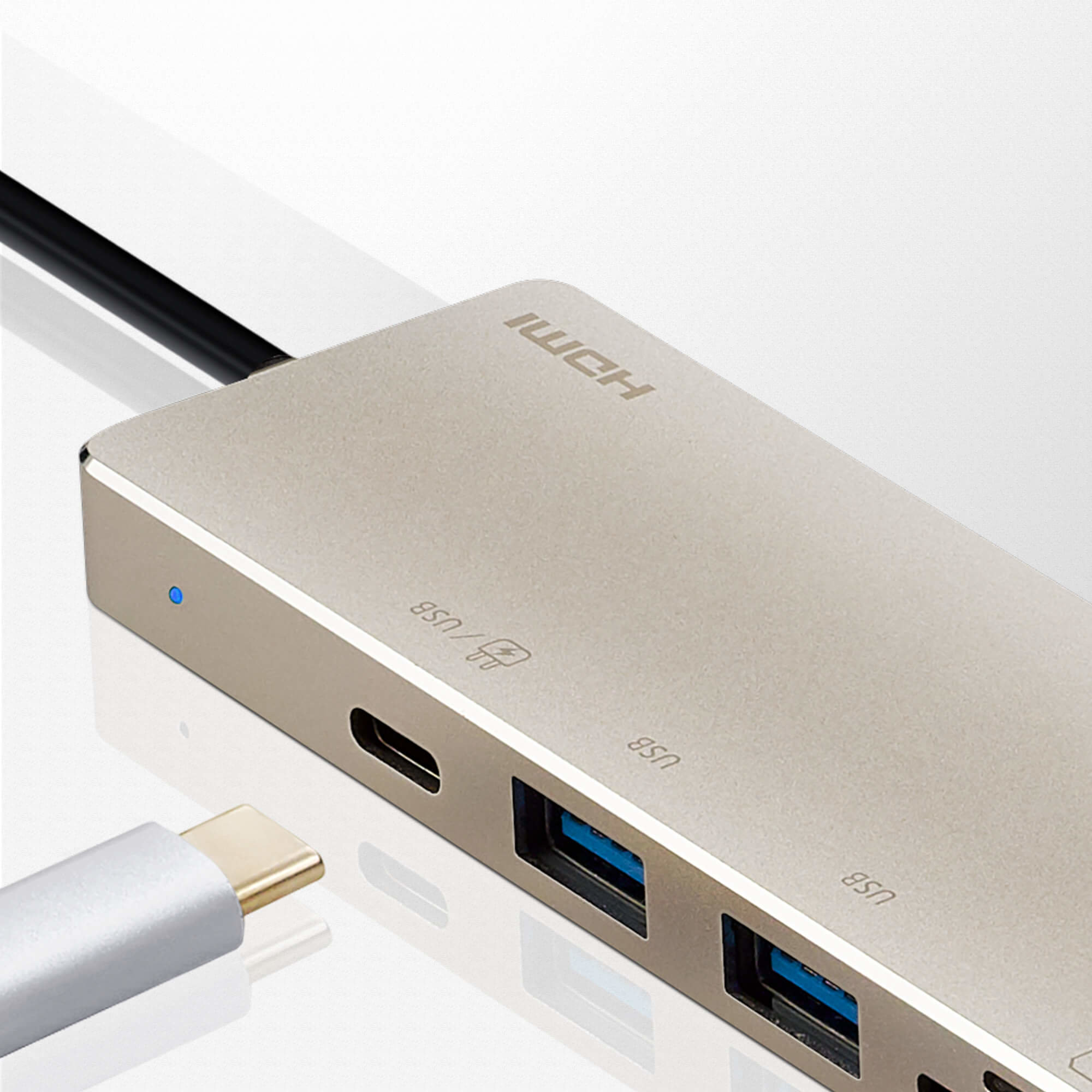

The UH3239 USB-C Multiport Mini Dock with Power Pass-Through is a portable, versatile and flexible 6-in-1 adapter for USB-C PCs or laptops. The durable aluminum enclosure ships with dual USB 3.2 Type-A ports, a USB-C PD port, an HDMI port along with an SD card and a MicroSD card slots. It covers users' peripheral connectivity demands while allowing power delivery to the connected USB-C device. It supports resolutions up to 4K HDMI (3840 x 2160 @ 30Hz) to ensure that every detail of the video is displayed in the crisp and sharp UHD resolution on the 4K graphics-supported laptop. Besides, its 2 USB 3.2 Gen 1 Type-A ports guarantee effective communication with peripherals at a decent 5 Gbps transmission speed. Thanks to the USB-C PD port, the UH3239 can provide power or charge the external devices, and hence, there will be no more tangled data cables on the desk.
The UH3239 is a plug-and-play device compatible with all major operating systems (Windows®, macOS X and iPadOS). It is a compact, yet competent, data and power transmission solution for on-the-go professionals when it comes to building a mobile workstation ecosystem.

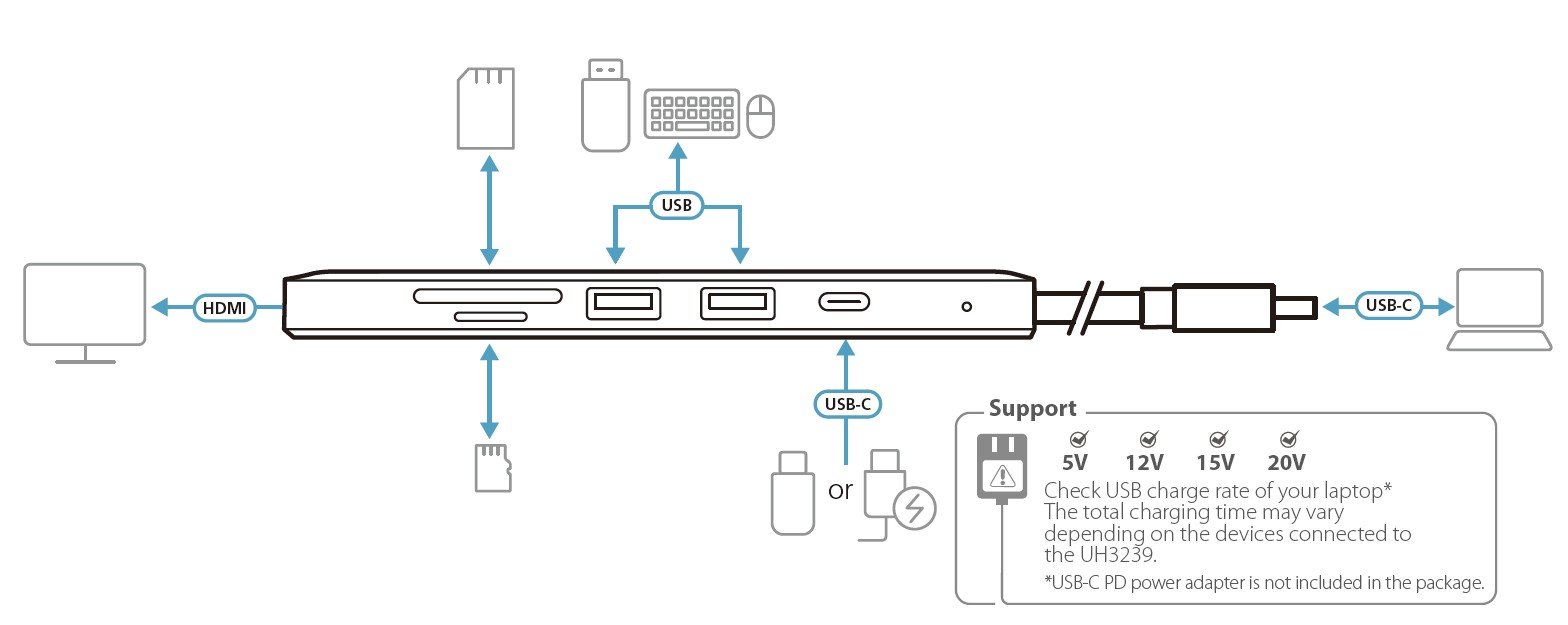

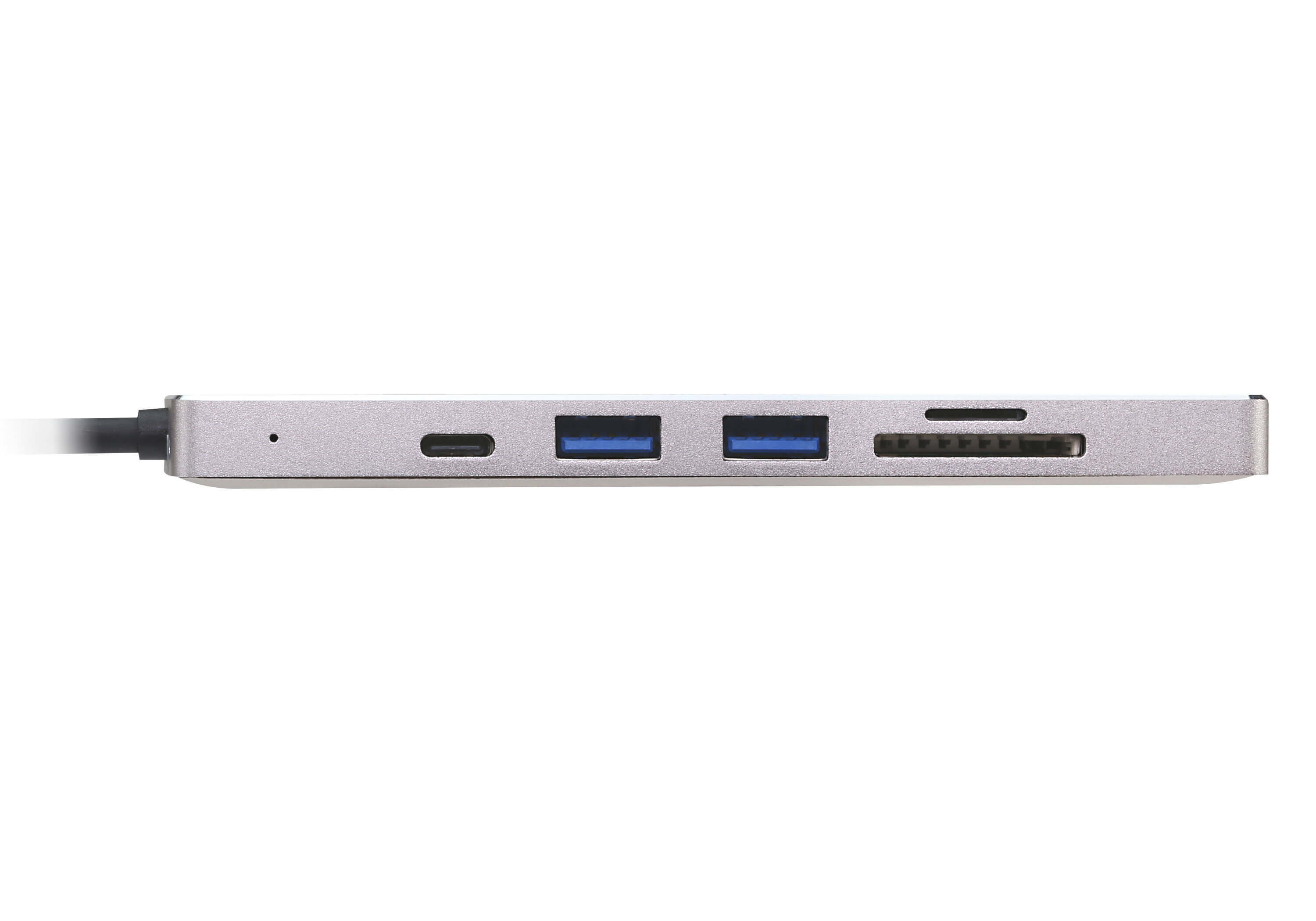

6-in-1 multi-function dock that includes 1x HDMI, 1x SD / Micro SD card reader, 1x USB-C PD port and 2x USB 3.2 Gen 1 Type-A ports
Supports USB PD 2.0 for laptop charging up to 60W via USB-C PD power adapter – power profiles include 5V, 12V, 15V, 20V

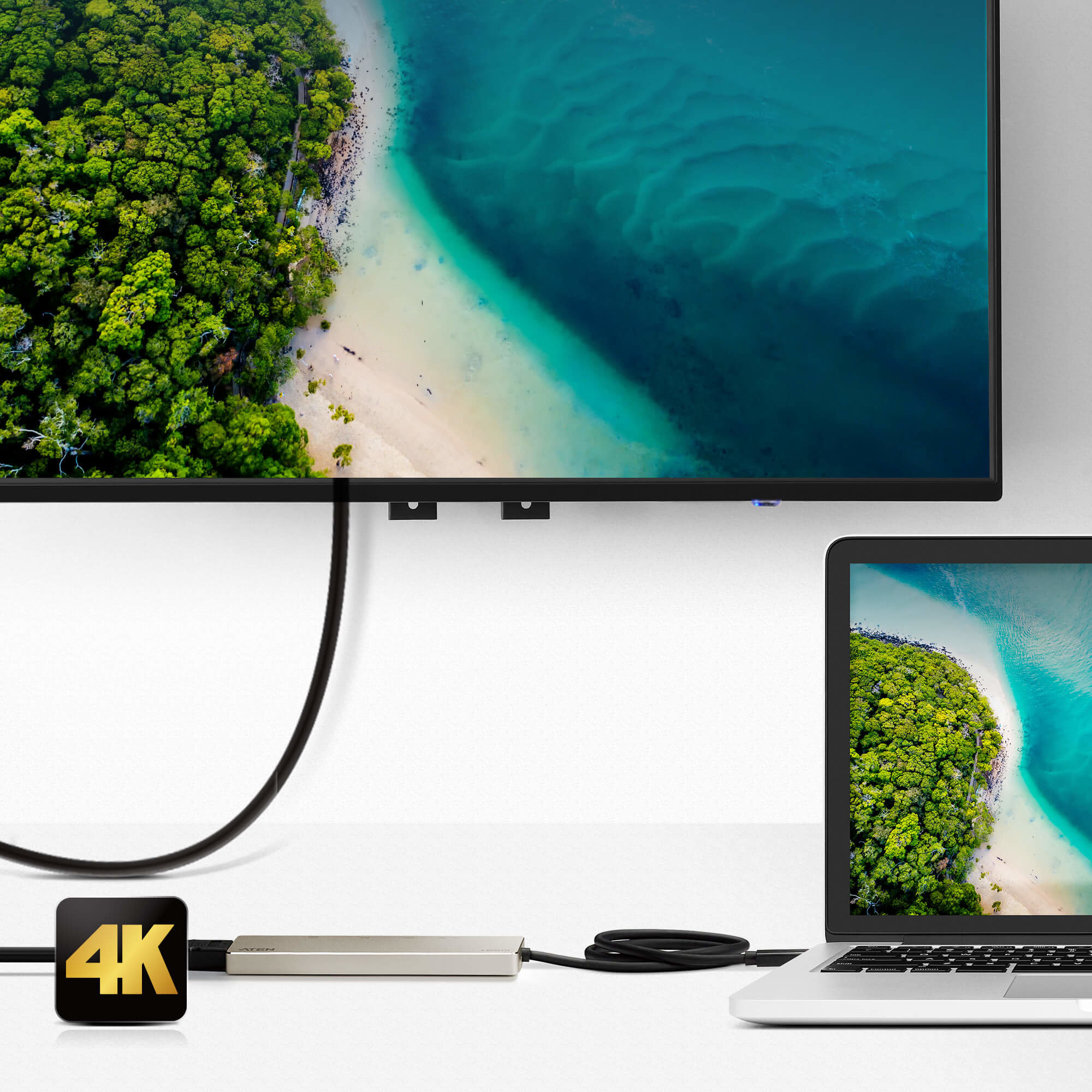

Supports resolutions up to 4K (3840 x 2160 @ 30Hz) for superior video distribution
Plug and Play – no drivers needed
Works with all major operating systems: Windows®, macOS X and iPadOS
Compatible with Thunderbolt™ 3 (USB-C )
Computer Connections
1
Cable Length
55cm
Connectors
Computer
USB 3.2 Gen1 Type-C Male Cable
Device
2 x USB 3.2 Gen 1 Type-A Female (Blue)
Power
1 x USB Type-C Female ( (supports USB 3.2 Gen1 Type-C Port data transfer) )
Support Power Delivery 2.0 for laptop charging up to 60W, power profiles include 5V, 12V, 15V, 20V (additional USB-C power adapter needed)
Video Output
1 x HDMI Female (Black)
Performance
Flash Memory
Supports SD V1.0/ v1.1/ v2.0/ V3.01 and V5.0
SD (Capacity up to 2GB)
SDHC (Capacity up to 32GB)
SDXC (Capacity up to 2TB)
Video Resolution
3840 x 2160@30Hz
Power Consumption
DC5V:15WBTU
System Requirements
Windows 10 or later, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above.12 or later, USB-C enabled computer
iPadOS 13.1 or later, iPad Pro (USB-C)
Environmental
Operating Temperature
0 – 40°C
Storage Temperature
-20 – 60°C
Humidity
0 – 80% RH, Non-condensing
Physical Properties
Housing
Aluminum
Weight
0.08 kg ( 0.18 lb )
Dimensions (L x W x H)
13.30 x 3.60 x 1.10 cm
(5.24 x 1.42 x 0.43 in.)
