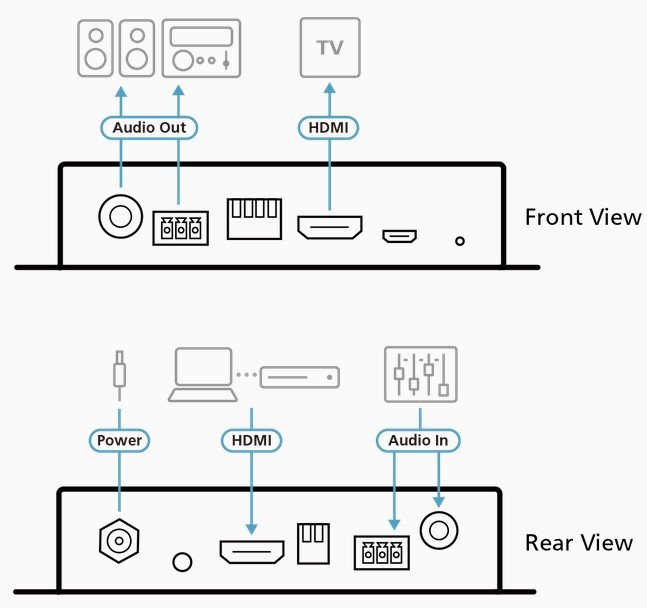

Embeds audio to the HDMI output or de−embeds audio from the HDMI signal and outputs the extracted signal through an alternative audio system
Easy embedding / de-embedding mode selection via 2 / 4-pin DIP switches
HDMI (3D, Deep Color, True 4K ); HDCP 2.2 compliant
True 4K video quality – supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
Supports True 4K / HDR formats – HDR 10, HDR 10+, Dolby Vision and Hybrid Log-Gamma (HLG)
Supports HDMI audio formats – LPCM 2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1
Compact, portable metal enclosure designed for HDMI Lock-pro
Firmware upgradable
LEDs
Power
LED (blue) x1
Reset Button
Push button x1 (to activate mode configuration)

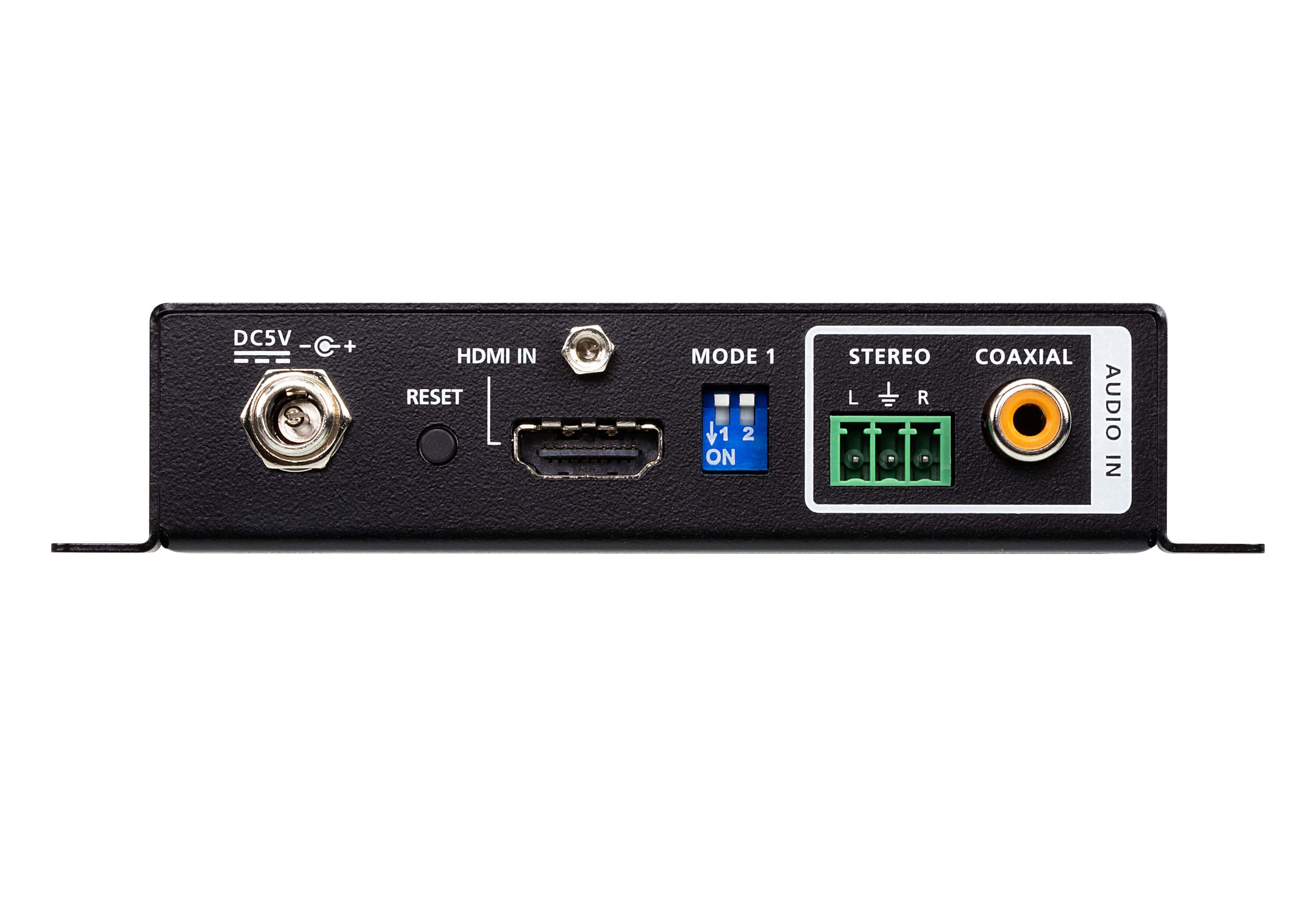

Switches
Mode Selection
MODE 1 (2-PIN)
PIN#1 (Enable / Disable Audio Embedder Function)
PIN#2 (Audio embed from Coaxial / Stereo)
MODE 2 (4-PIN)
PIN#1 (Enable / Disable Audio Extractor Function)
PIN#2 (Enable / Disable ARC function)
PIN#3&4 (EDID mode selection: Bypass, 5.1 CH, 2 CH, Learn)
Video Input
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5 meters
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5 meters
Video
Max. Data Rate
18 Gps
Max. Pixel Clock
600 MHz
Compliance
HDMI 2.0 (3D, Deep Color)
HDCP 2.2
Max. Resolution
4096 X 2160@60Hz(4:4:4) 8 bit
Audio
Output
Coaxial x1
Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1
3-pin terminal block x 1
Format: Analog, stereo, unbalanced, LPCM2.0
Input
Coaxial x1
Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1
3-pin terminal block x 1
Format: Analog, stereo, unbalanced, LPCM2.0
Connectors
Power
1 x DC Jack, 5V 1A, Lockable
Firmware Upgrade
1 x Micro USB
Power Consumption
DC5V:2.905W:9.92BTU
Environmental
Operating Temperature
0 - 40 ºC
Storage Temperature
-20 - 60 ºC
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.24 kg ( 0.53 lb )
Dimensions (L x W x H)
12.22 x 8.22 x 2.50 cm
(4.81 x 3.24 x 0.98 in.)
