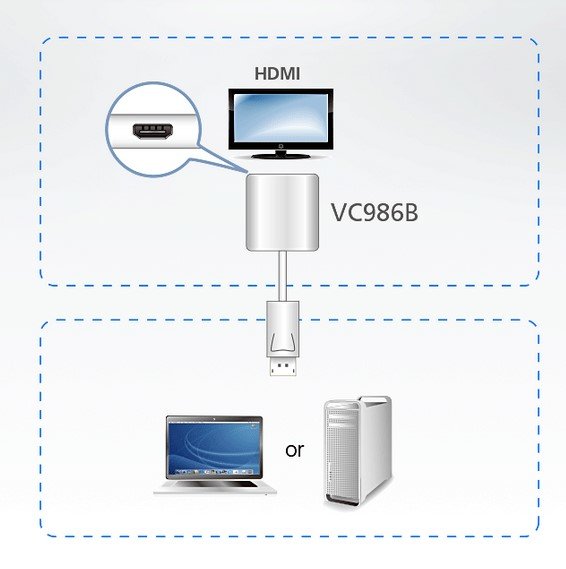

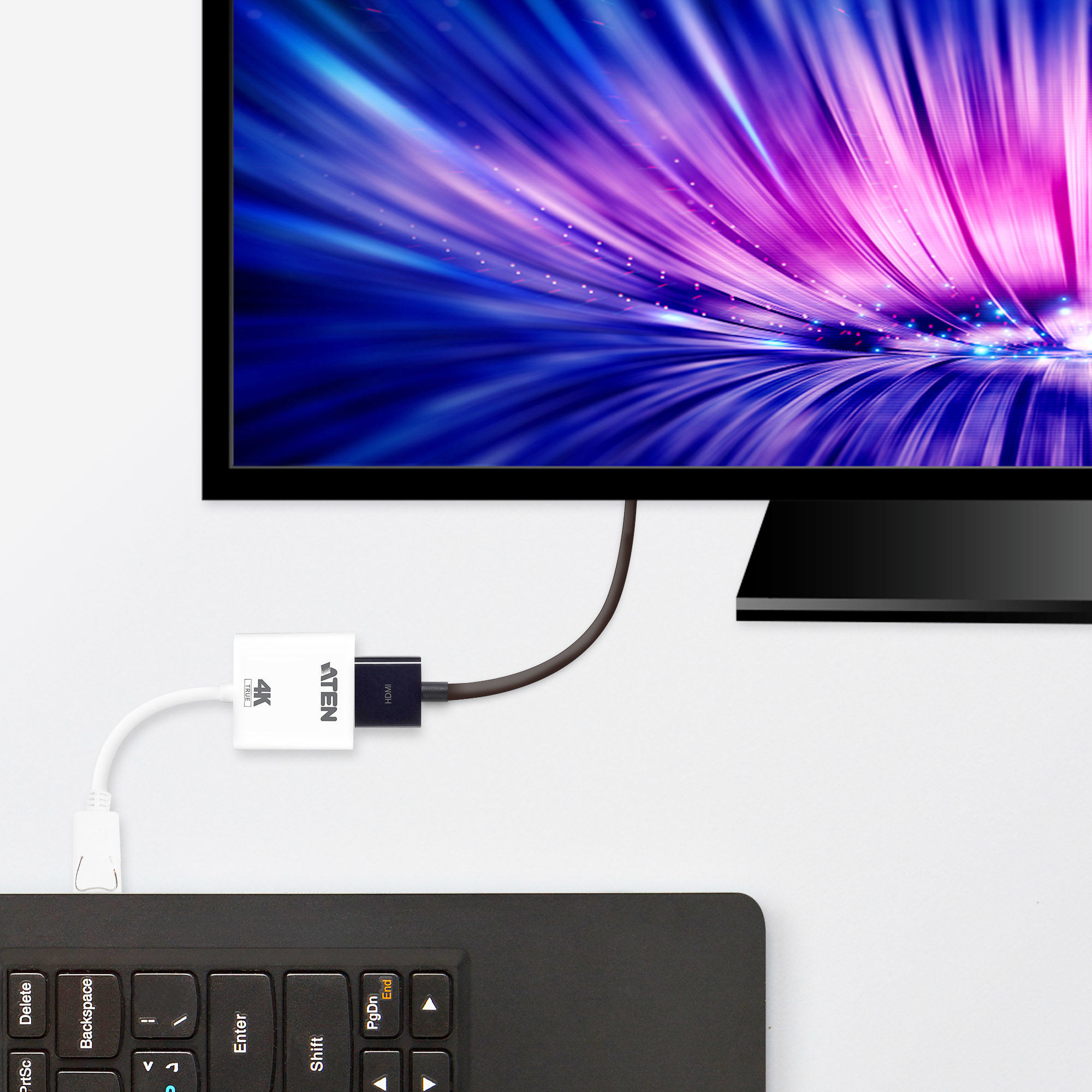

Converts DisplayPort signals to HDMI output

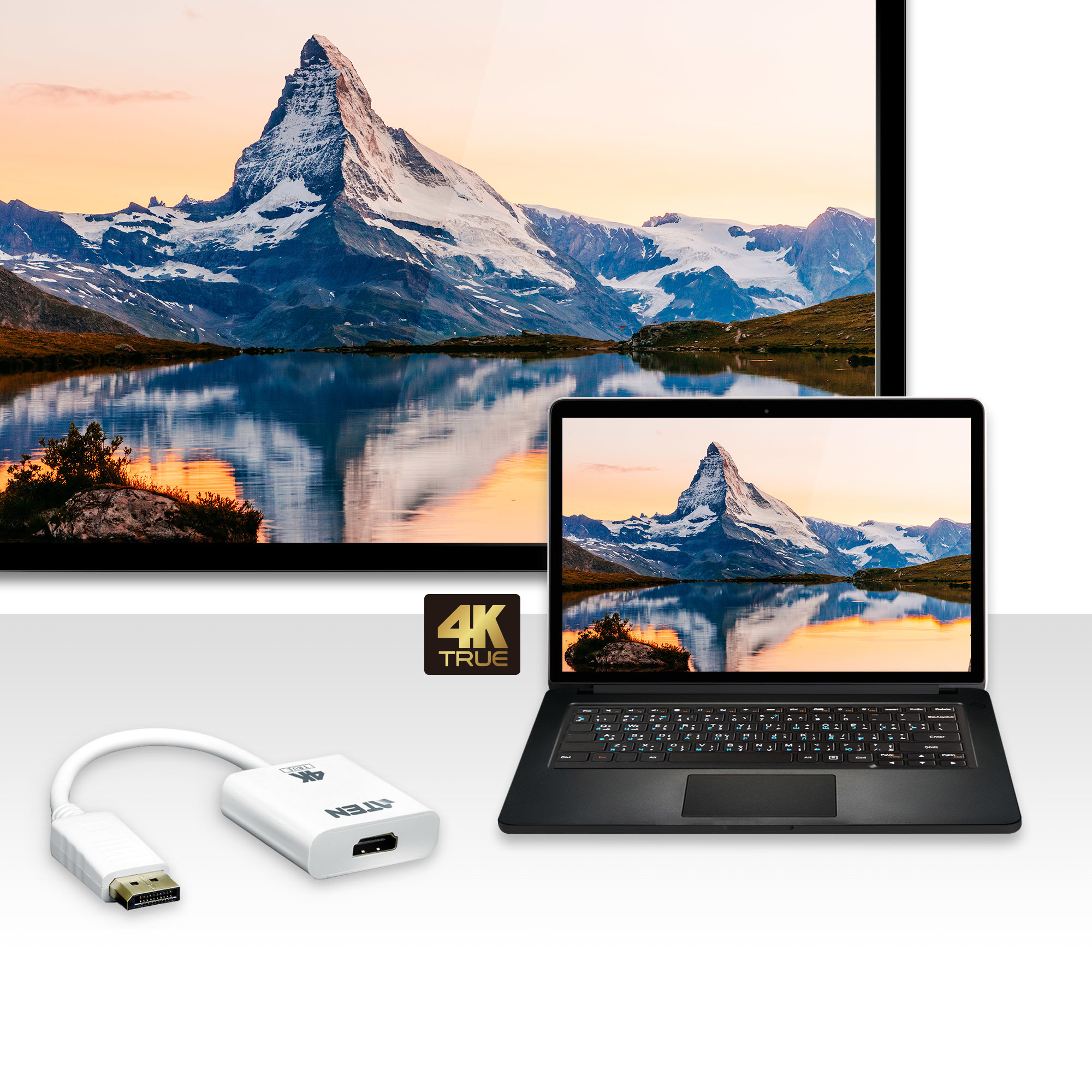

Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to True 4K

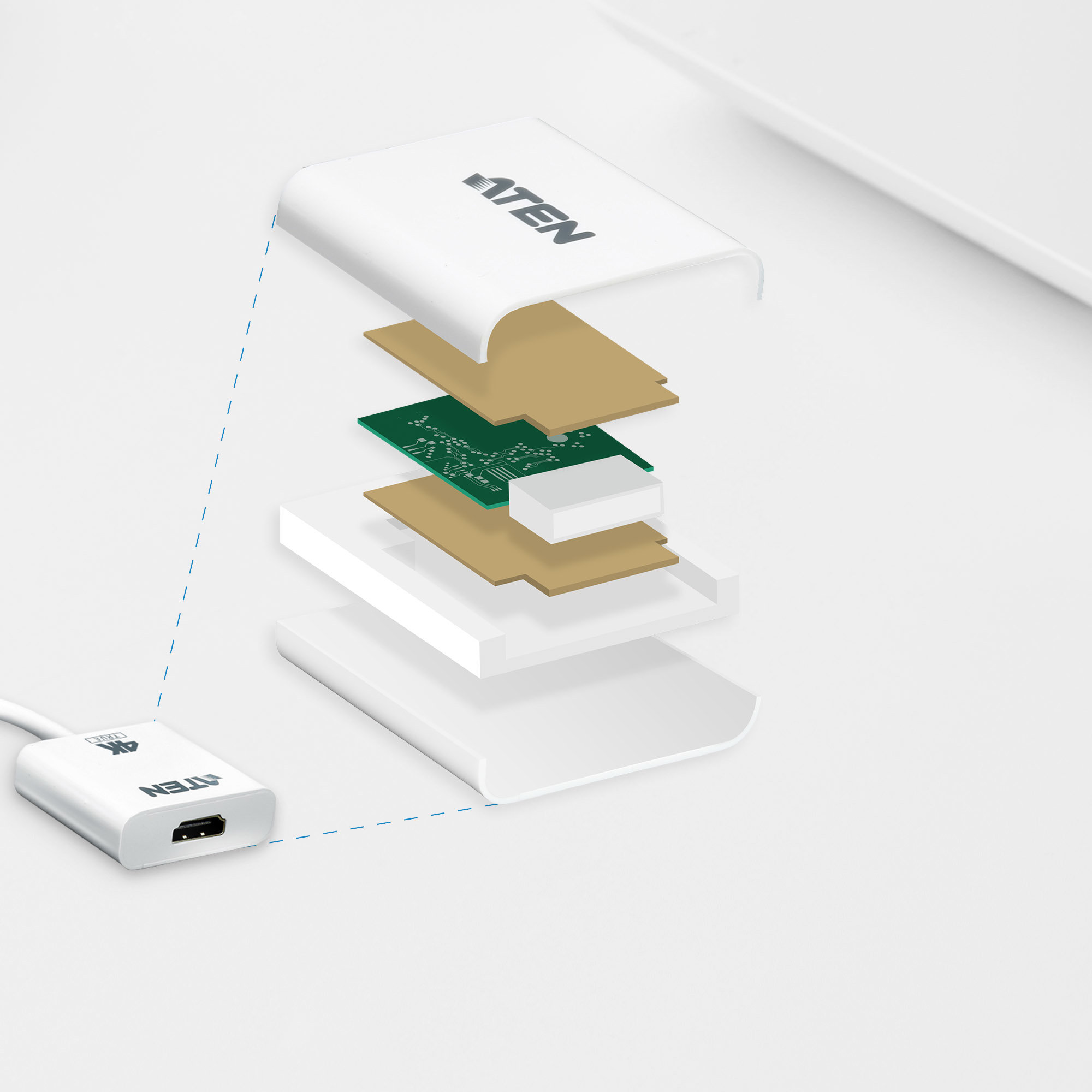

Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++)

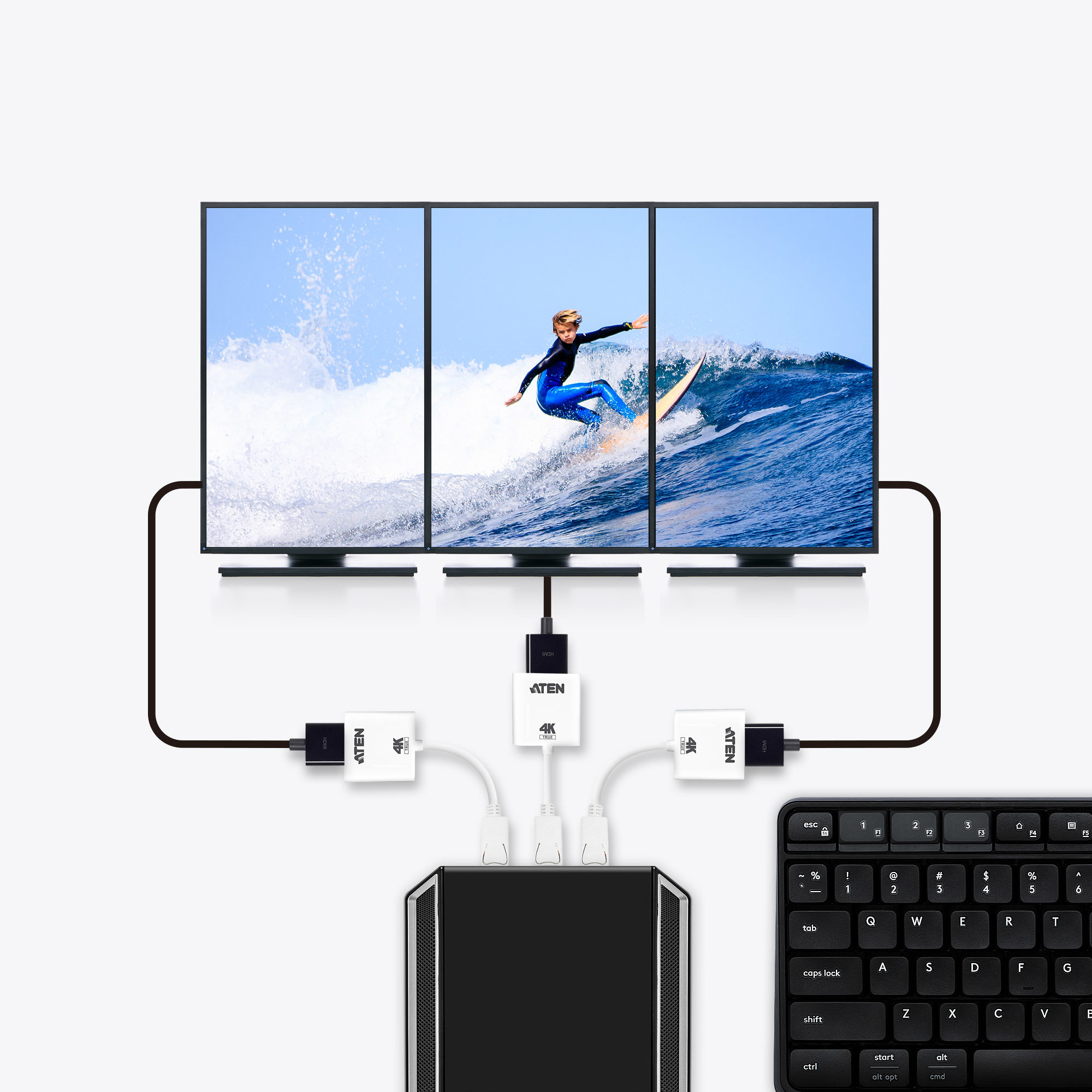

Supports AMD Eyefinity™ Technology (multi-screen setups)
Audio supported
No software or driver installation required
DisplayPort 1.2 compliant
Video Input
Interfaces
1 x DisplayPort Male (White)
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Video
Max. Pixel Clock
600 MHz
Max. Resolution
4096x2160@60Hz / 3840x2160@60Hz
Compliance
DP1.2a / HDMI 2.0 / HDCP 2.2
Max. Data Rate
18 Gbps (6 Gbps Per Lane)
Audio
Output
1 x HDMI Type A Female (Black)
Environmental
Operating Temperature
0 - 50 ºC
Storage Temperature
-20–60 ºC
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Plastic
Weight
0.04 kg ( 0.09 lb )
Dimensions (L x W x H)
18.00 x 4.50 x 1.50 cm
(7.09 x 1.77 x 0.59 in.)
