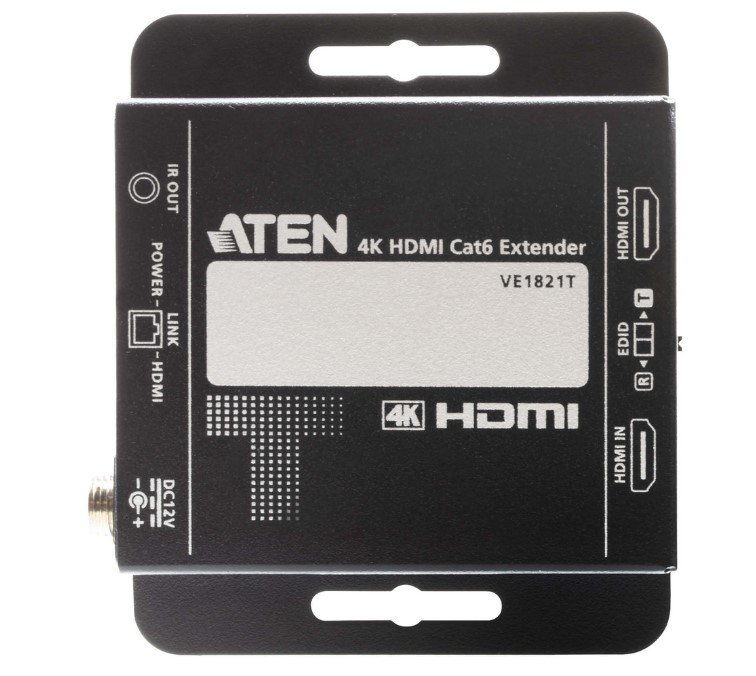

Aten VE1821 4K HDMI Cat 6 Extender

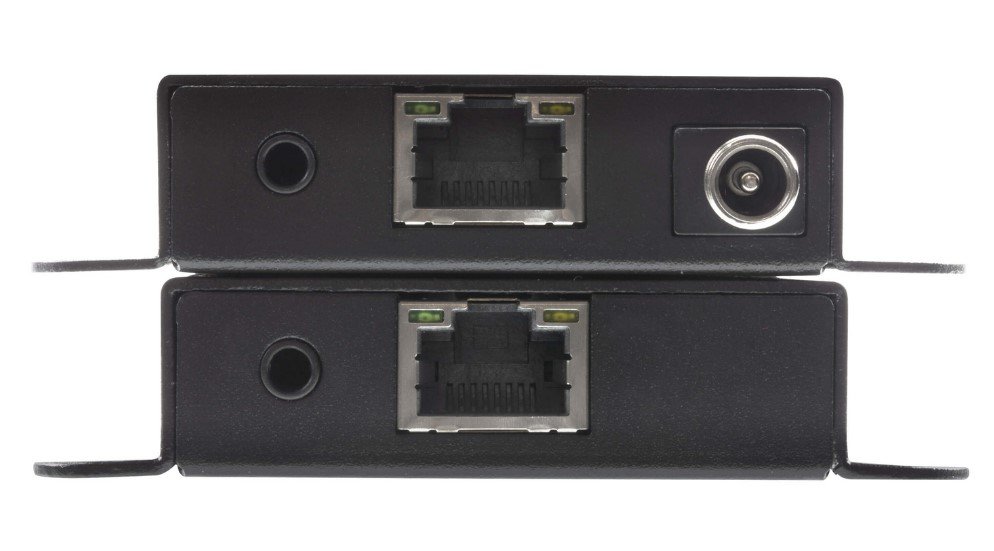

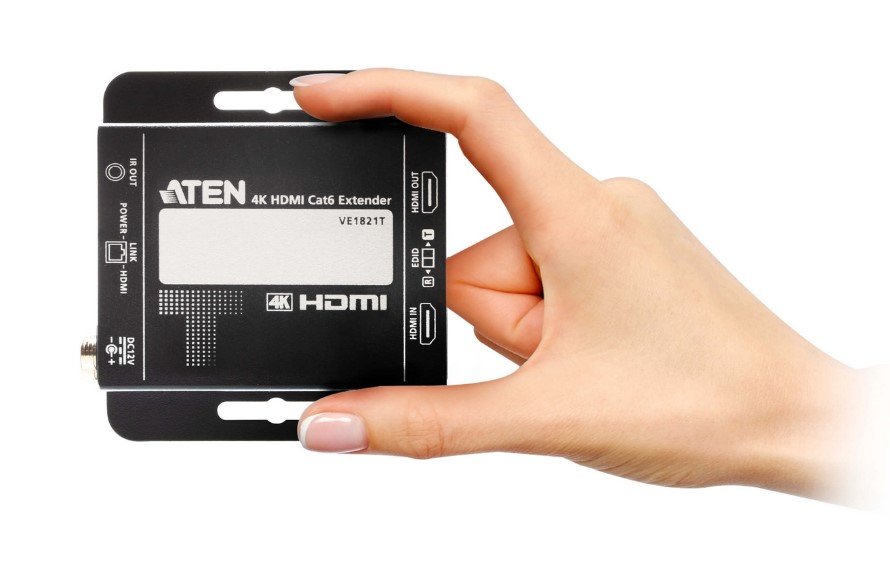

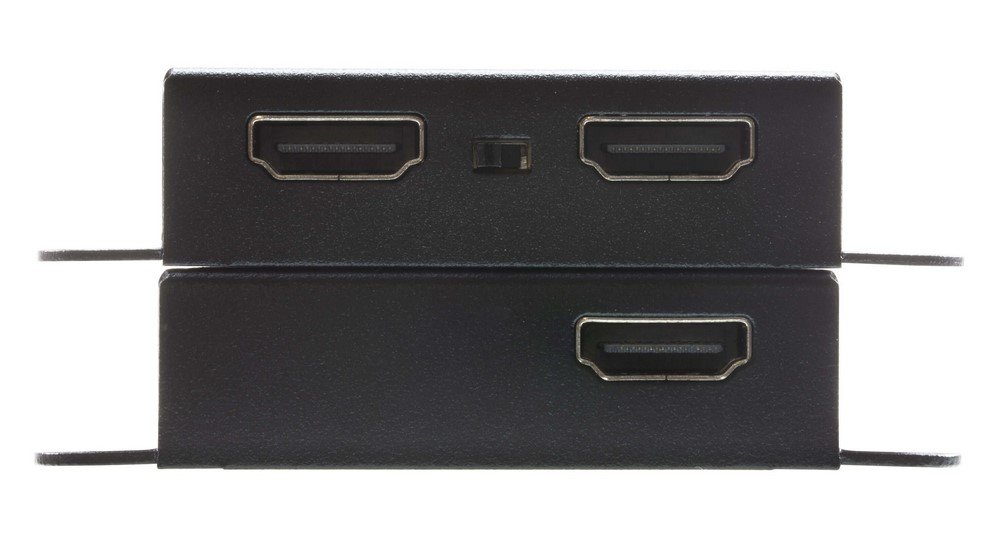

Includes a transmitter and a receiver to work in tandem to extend 4K HDMI signals over a Cat 5e / 6 cable Ultra lightweight, palm-sized enclosure for easy mounting or placement in tight spaces Crystal clear 4K HDMI transmission with zero latency across up to 40 m via a Cat 6 cable (ATEN 2L-2910 recommended) /30 m via a Cat 5e cable Local HDMI output port on the transmitter unit – enables cascading or users to monitor the UHD signal being extended to the receiver Built-in EDID switch – users can control which EDID is taken from either display EDID Copying Mode – HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display IR signal transmission – the source device connected to the transmitter can be seamlessly controlled from the receiver side PoC (Power over Cable) technology – power can be delivered from the transmitter to the receiver via a Cat 5e / 6 cable to eliminate the need for a bulky external power supply HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant Built- in ESD protection Plug-and-play – no additional software needed Input Resolutions 640x480 @ 60/75 Hz 1920x1080 @ 60 Hz 800x600 @ 60/75 Hz 1920x1200 @ 60 Hz 1024x768 @ 60/75 Hz 480p @ 60 Hz (4:3)/(16:9) 1280x800 @ 60 Hz 576p @ 50 Hz (4:3) 1280x1024 @ 60/75 Hz 640x480 @ 60Hz (4:3) 1400x1050 @ 60 Hz 720p @ 50/60 Hz 1440x900 @ 60 Hz 1080p @ 24/25/30/50/60 Hz 1600x1200 @ 60 Hz 3840x2160p @ 24/25/30 Hz 1680x1050 @ 60 Hz 4096x2160p @ 24/25/30 Hz Function VE1821R VE1821T Video Input Interfaces N/A 1 x HDMI Type A Female (Black) Impedance N/A 100 Ω Max. Distance N/A 3 m Video Output Interfaces 1 x HDMI Type A Female (Black) 1 x HDMI Type A Female (Black) Impedance 100 Ω 100 Ω Max. Distance 3 m 3 m Video Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane) Max. Pixel Clock 340 MHz 340 MHz Compliance HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible Max. Resolutions / Distance Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Input N/A 1 x HDMI Type A Female (Black) Output 1 x HDMI Type A Female (Black) N/A Control IR Channel 1 x Mini Stereo Jack Female (Black); Single way bypass channel from receiver to transmitter 1 x Mini Stereo Jack Female (Black); Single way bypass channel from receiver to transmitter Switches Mode Switch N/A EDID Mode Selection (Read EDID from Transmitter HDMI output or Receiver HDMI output) Connectors Power 1 x RJ-45 Female (Power over Cable, power supply from VE1821T) 1 x DC Jack (Black) with locking Unit To Unit 1 x RJ-45 Female 1 x RJ-45 Female Power Consumption POC:0.87W:4BTU DC12V:1.86W:9BTU Environmental Operating Temperature 0 - 40°C 0 - 40°C Storage Temperature -20 - 60°C -20 - 60°C Humidity 20 - 90% RH, Non-Condensing 20 - 90% RH, Non-Condensing Physical Properties Housing Metal Metal Weight 0.12 kg ( 0.28 lb ) 0.12 kg ( 0.28 lb ) Dimensions (L x W x H) with bracket 7.95 x 6.80 x 1.65 cm (3.13 x 2.68 x 0.65 in.) 7.95 x 6.80 x 1.65 cm (3.13 x 2.68 x 0.65 in.) Dimensions (L x W x H) without bracket 5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.) 5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.) Package Contents 1x VE1821T 4K HDMI Cat 6 Extender (Transmitter) 1x VE1821R 4K HDMI Cat 6 Extender (Receiver) 1x IR emitter cable 1x IR receiver cable 1x power adapter and 4 power plugs 1x user instructions
