Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4)
HDMI (3D, Deep Color, True 4K , HDR , ARC); HDCP 2.2 compliant
Extends True 4K signals up to 20m
Reduced EMI and RFI for lower noise interference
High data transfer rate of 18 Gbps
Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
Plug-and-play
Cable Length
20M / 65.6ft
Cable Type
Hybrid type with optical fiber (OM3) and copper wire
Video Input
Interfaces
1 x HDMI 19-pin Type-A Male
Video Output
Interfaces
1 x HDMI 19-pin Type-A Male
Video
Max. Data Rate
18 Gbps (6 Gbps per Channel)
Max. Pixel Clock
600 MHz (Max.)
Max. Resolutions / Distance
Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 20M
*Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0
*Color Depth: 30 / 36 / 48 bit
Compliance
HDMI (3D, Deep Color, 4K, HDR, ARC)
HDCP 2.2
Communication
Signals
TMDS / HDCP 2.2 / EDID / CEC
Audio
Input
PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output
PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio

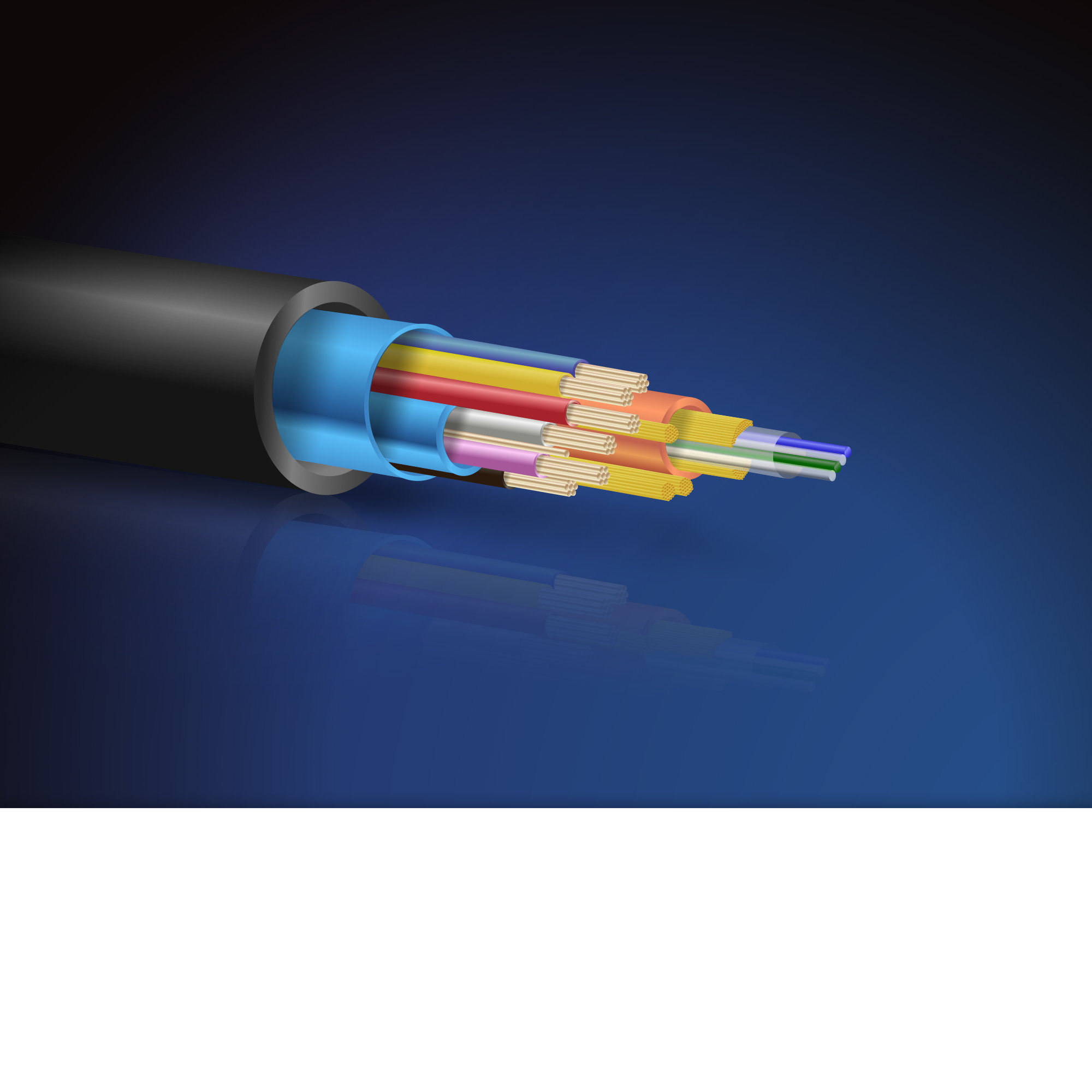

Conductor
Construction
7 x Tinned Copper wire strand
4 x OM3 Optical Fiber (50/125um)
Notification
Bend Radius: 20mm (Min.)
Compression Load Resistance: Max. 50kg (500N)
Cable Filler: Kevlar
Cable Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE
* NO external power required
Certifications
Certifications
Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1
EMC Class-A / Class-B
Power Consumption
DC5.0V:0.25W:0.05ABTU
Jacketed
Material
PVC (85P)
Color: Black
Environmental
Operating Temperature
0°C to 50°C (32℉ to 122℉)
Storage Temperature
-20°C to 70°C (-4℉ to 158℉)
Humidity
0 - 85% RH, Non-Condensing
Physical Properties
Housing
Connector Case: Zinc Alloy
Weight
0.65 kg ( 1.43 lb )
Cable Outer Dimension
4.5mm (± 0.2mm)
Package Contents
1x VE781020 20M True 4K HDMI Active Optical Cable
1x Installation Notice
