Digitus DS-55508 4K HDBaseT HDMI Extender Set

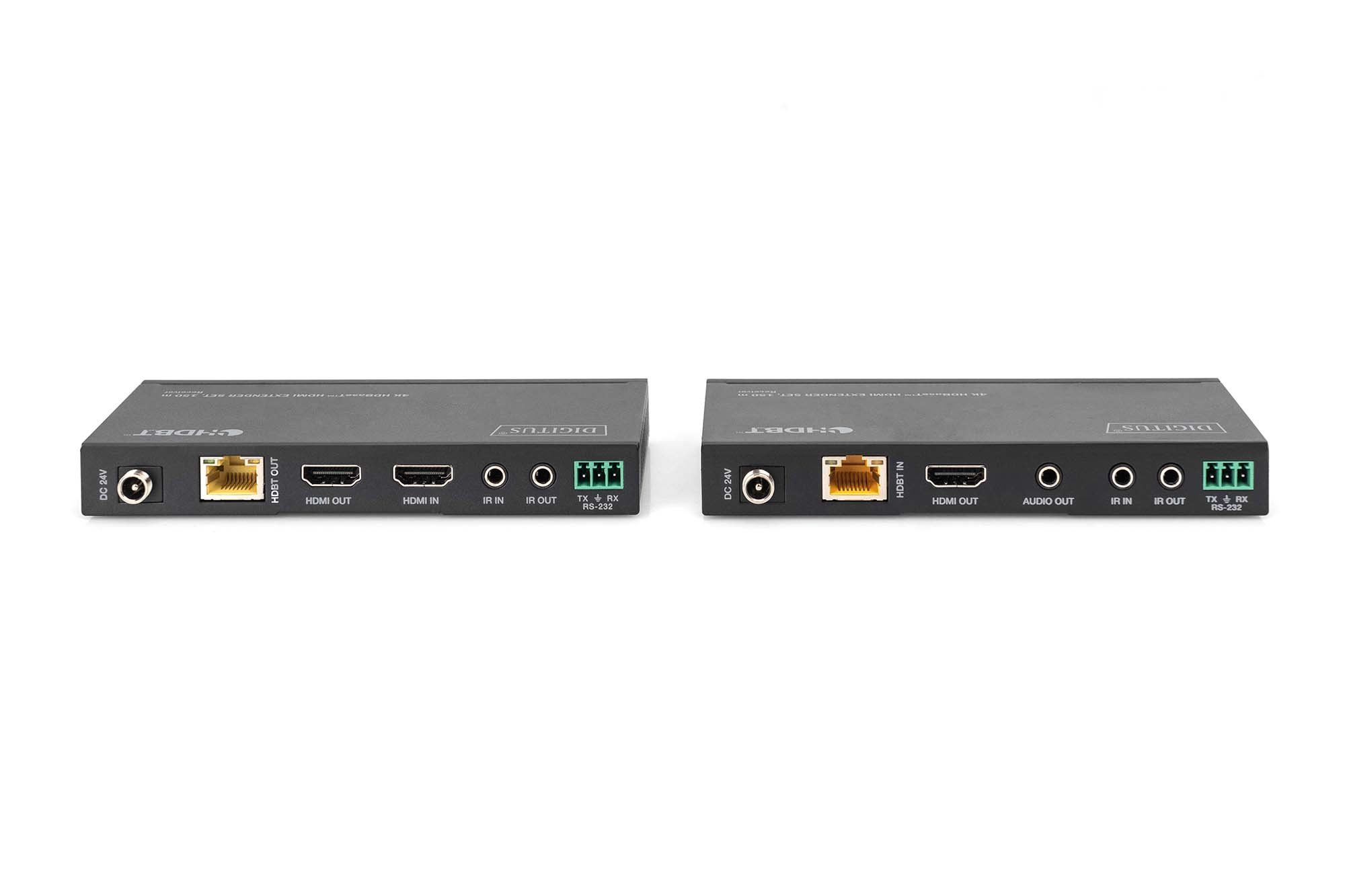

Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m Supports 4K2K/60Hz (4:4:4) Maximum transmission distance (UHD 4K2K): 120 m Maximum transmission distance (Full HD 1080p): 150 m Video bandwidth: 18 Gbps Bi-directional IR transmission CEC pass-through Transmitter unit connections: 1x HDMI input (4K/60Hz) - Connection signal source 1x RJ45 (HDBaseT™) output - Connection CAT transmission cable 1x HDMI loop-out / output – Connection of local monitor (source device) 1x IR input to receive remote control signals 1x IR output for control of the source device 1x RS232 (3-pin Phoenix) for RS232 command transmission 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter 1x Micro USB input - Service/remote maintenance update Receiver unit connections: 1x HDMI output (4K/60Hz) - Connection output device 1x RJ45 input (HDBaseT™) - Connection CAT transmission cable 1x RS232 (3-pin Phoenix) for RS232 command transmission 1x 3.5 mm stereo audio output 1x IR input to receive remote control signals 1x IR output for control of the output display 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter 1x Micro USB input - Service/remote maintenance update ESD protection Suitable for wall mounting Operating temperature: 0-40° Power consumption: approx. 9.36 W Housing: Metal Dimensions (1 unit): L 14 x W 6.5 x H 1.8 cm Weight: Transmitter 160 g, Receiver 155 g Color: Black Attributes KVM: no PoE (Power over Ethernet): no Package content 1x Transmitter unit 1x Receiver unit 1x IR transmission cable (1.5 m) 1x IR receiver cable (1.5 m) 1x Power adapter (DC 24V/1A, 1.45 m) 2x 3-pin Phoenix connector 4x Mounting plate 1x User manual
